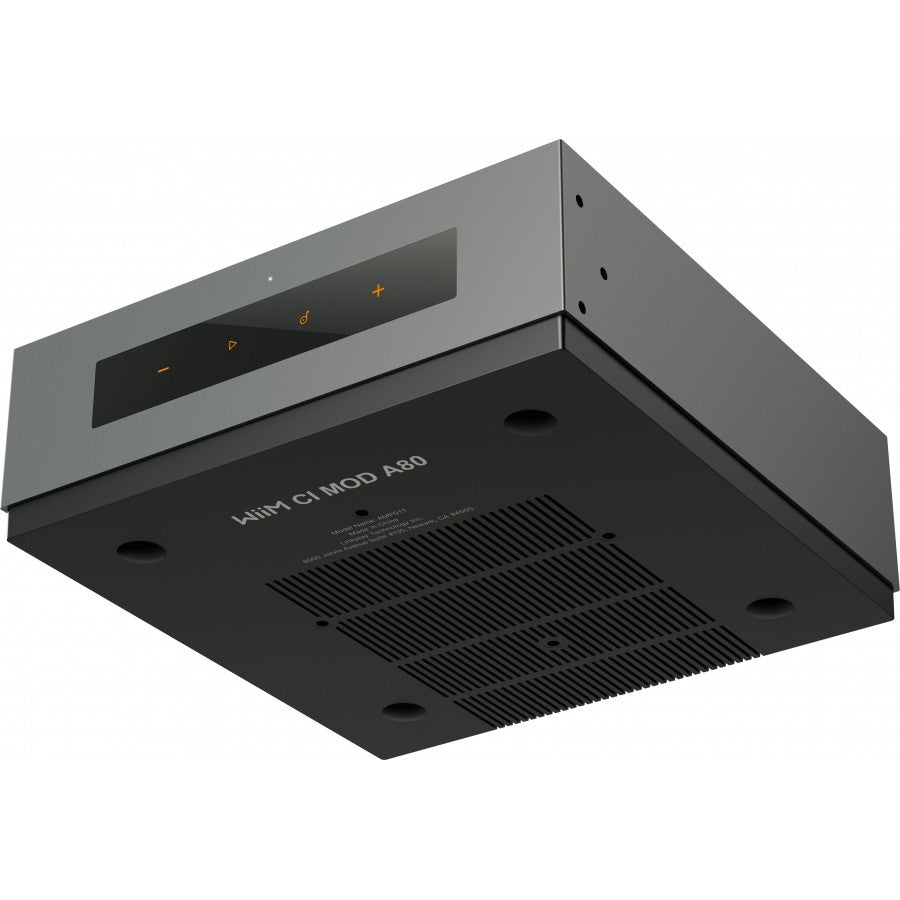

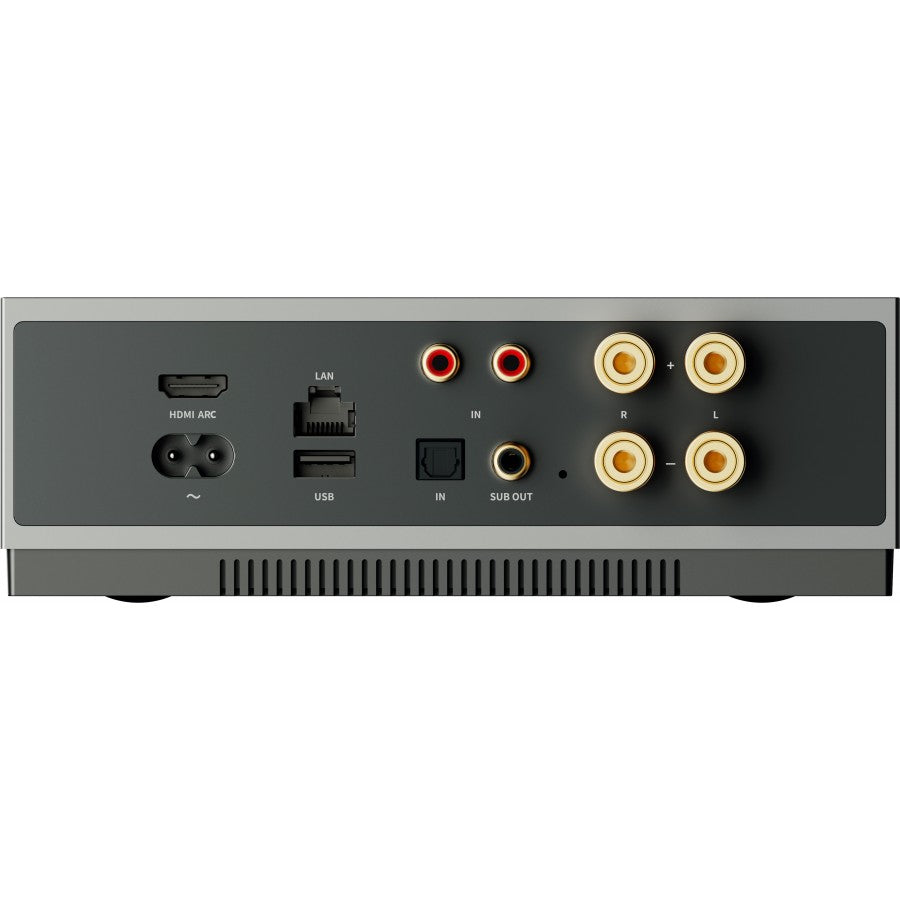

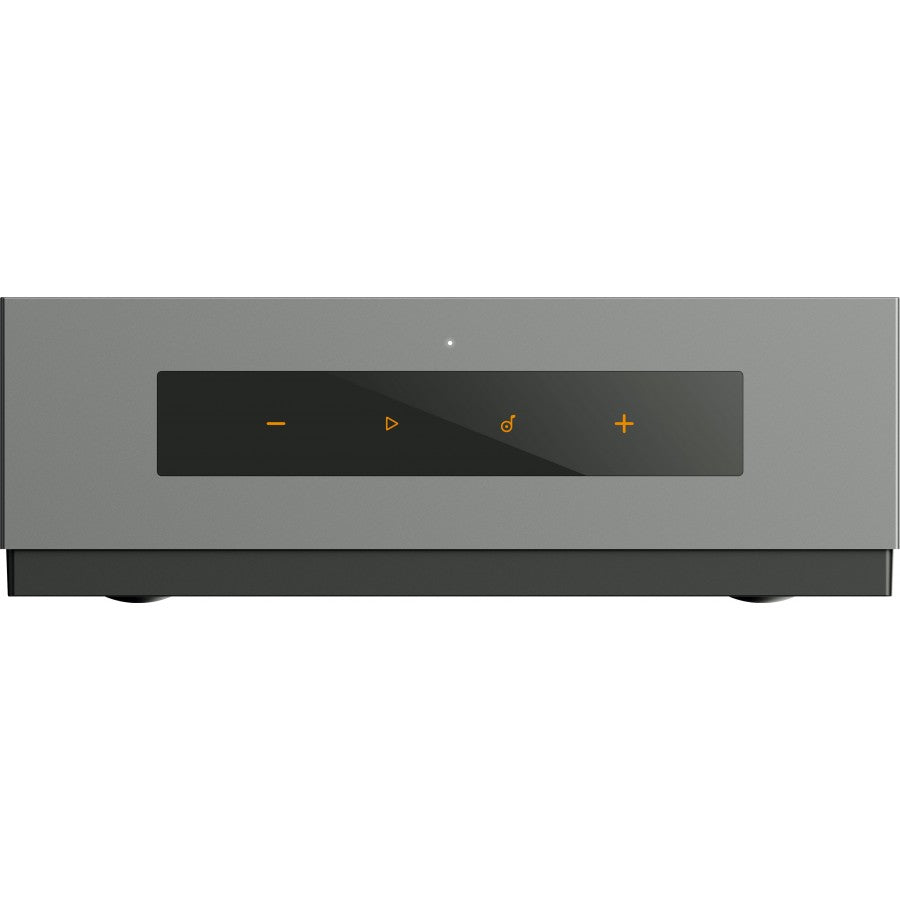

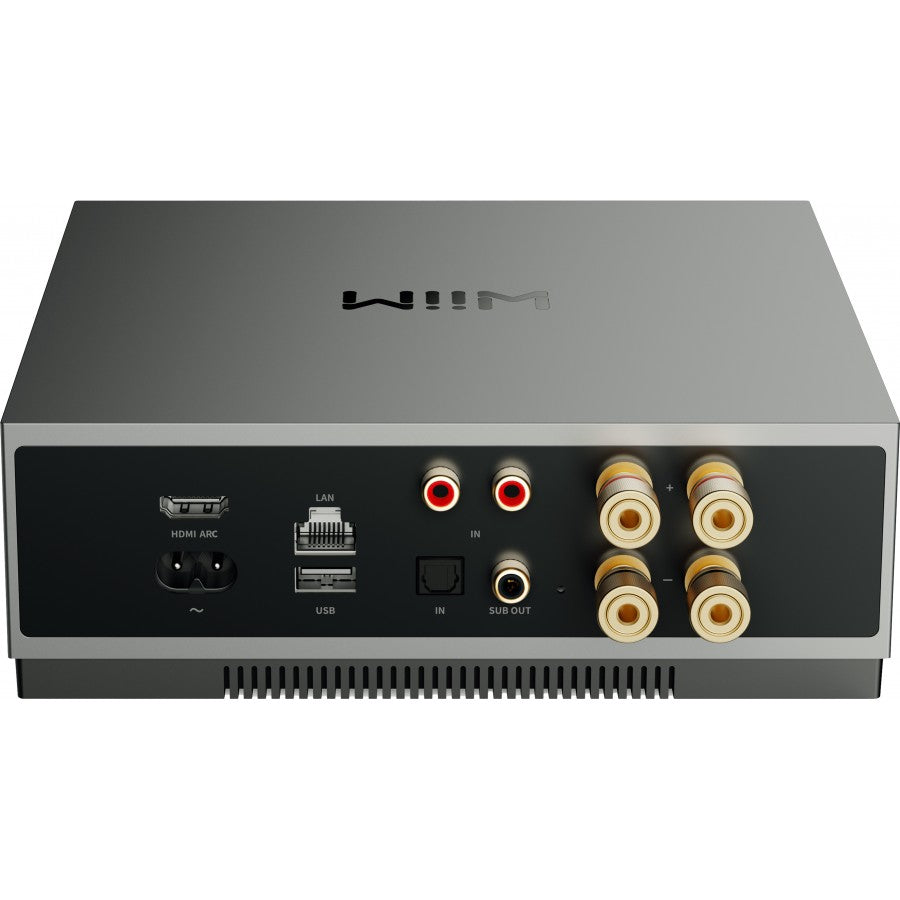

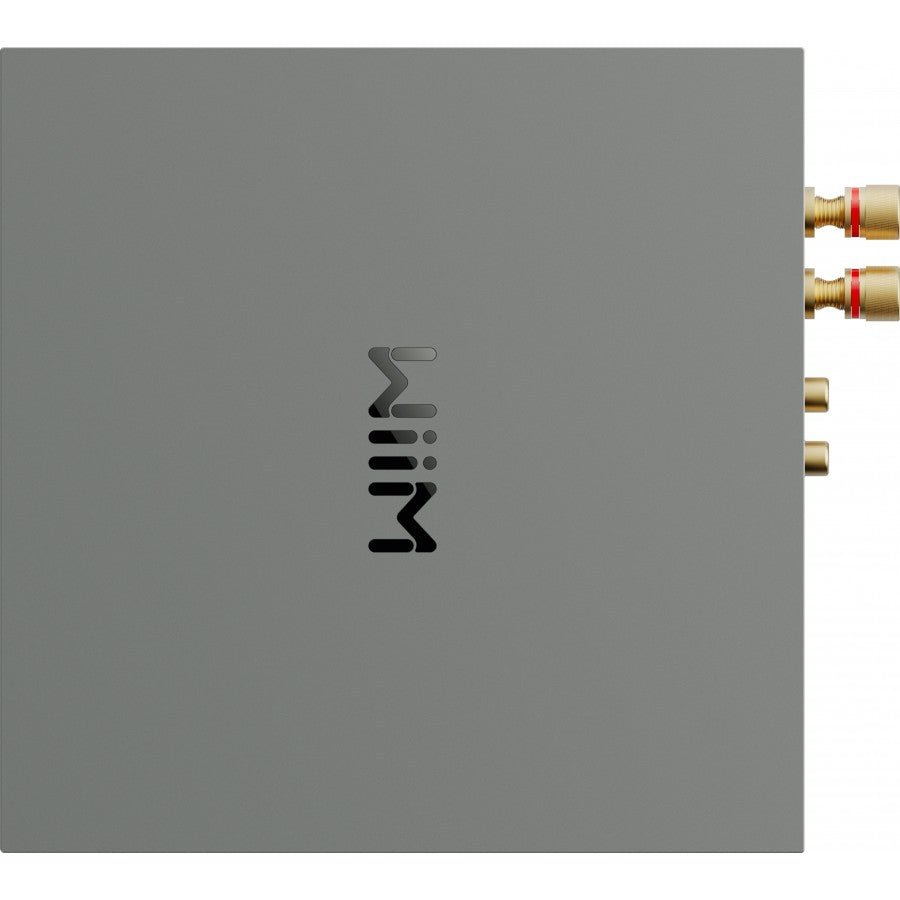

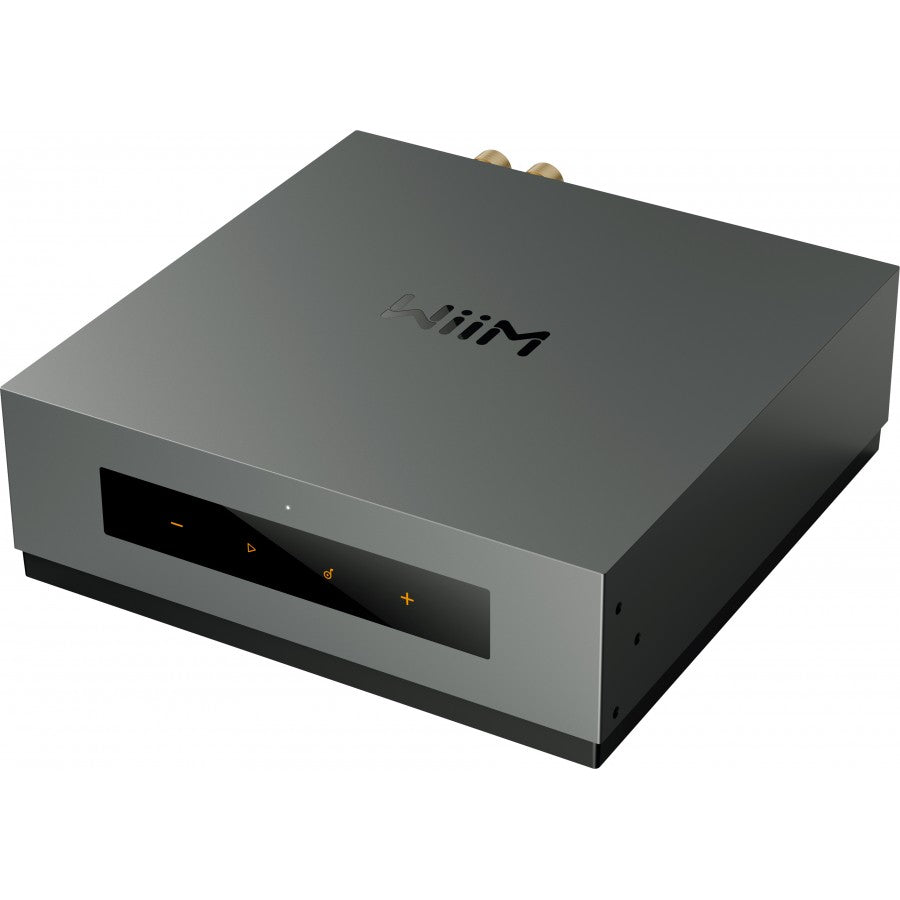

WiiM CI MOD A80 Custom Install Amplifier Module
R 11,400.00
WiiM CI MOD A80 — Custom Install Amplifier Module The WiiM CI MOD A80 is a high-performance custom install amplifier module designed for seamless integration into multi-room audio systems. Delivering 80W per channel into 4Ω, it combines audiophile-grade power with the flexibility and reliability demanded by professional CI installers. Compact, efficient, and built to...
WiiM CI MOD A80 — Custom Install Amplifier Module
The WiiM CI MOD A80 is a high-performance custom install amplifier module designed for seamless integration into multi-room audio systems. Delivering 80W per channel into 4Ω, it combines audiophile-grade power with the flexibility and reliability demanded by professional CI installers. Compact, efficient, and built to WiiM's exacting standards, the CI MOD A80 slots directly into compatible WiiM CI enclosures for a clean, rack-ready installation.
Whether you're powering in-ceiling speakers in a bedroom, a home theatre surround zone, or a distributed audio backbone, the CI MOD A80 delivers consistent, low-distortion performance across every listening environment.
Key Features
- 80W per channel into 4Ω — ample headroom for demanding speaker loads
- Class D amplification for cool, efficient operation in enclosed CI spaces
- Designed for WiiM CI modular enclosure ecosystem
- Low THD+N for clean, accurate audio reproduction
- Wide frequency response for full-range speaker compatibility
- Compact module form factor — minimal footprint, maximum output
- Ideal for multi-room, whole-home, and custom install audio projects
Specifications
| Specification | Value |
|---|---|
| Model | CI MOD A80 |
| Amplifier Class | Class D |
| Output Power (4Ω) | 80W per channel |
| Output Power (8Ω) | 40W per channel |
| Channels | 2 (Stereo) |
| THD+N | <0.05% (1W, 1kHz) |
| Frequency Response | 20Hz – 20kHz (±0.5dB) |
| Signal-to-Noise Ratio | >100dB (A-weighted) |
| Input Impedance | 10kΩ |
| Speaker Impedance | 4Ω – 8Ω |
| Form Factor | CI Modular Module |
| Compatible Enclosure | WiiM CI Modular Enclosure |
| Power Supply | Via WiiM CI Enclosure (external PSU) |
| Operating Temperature | 0°C – 40°C |
| Brand | WiiM |
