Wiim Amp Ultra Streaming Amplifier - Grey
Wiim Amp Ultra
100W of pure hi-fi power with a vibrant 3.5″ touchscreen for smart, seamless control

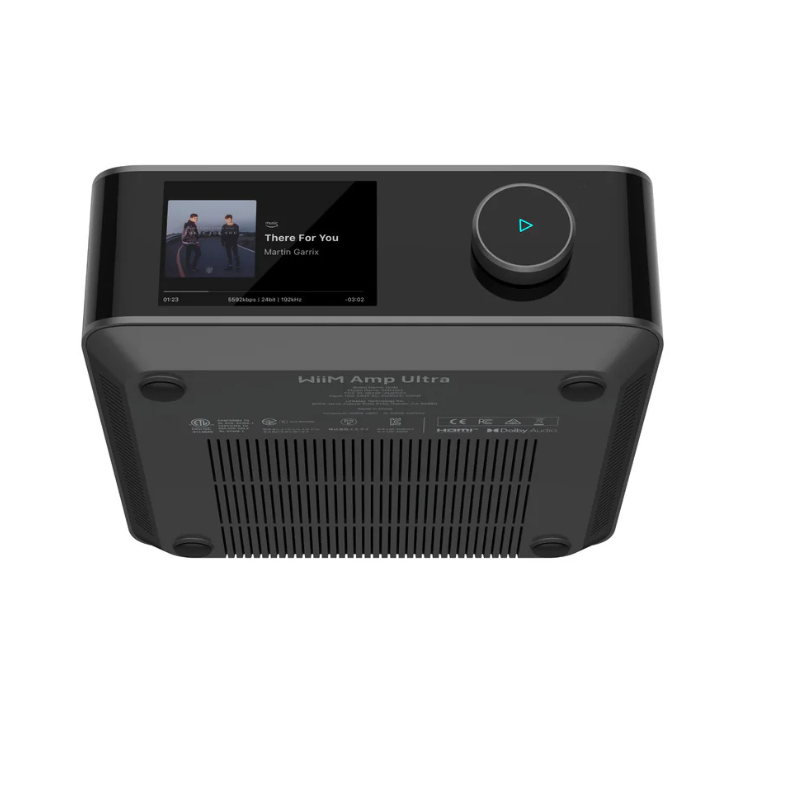

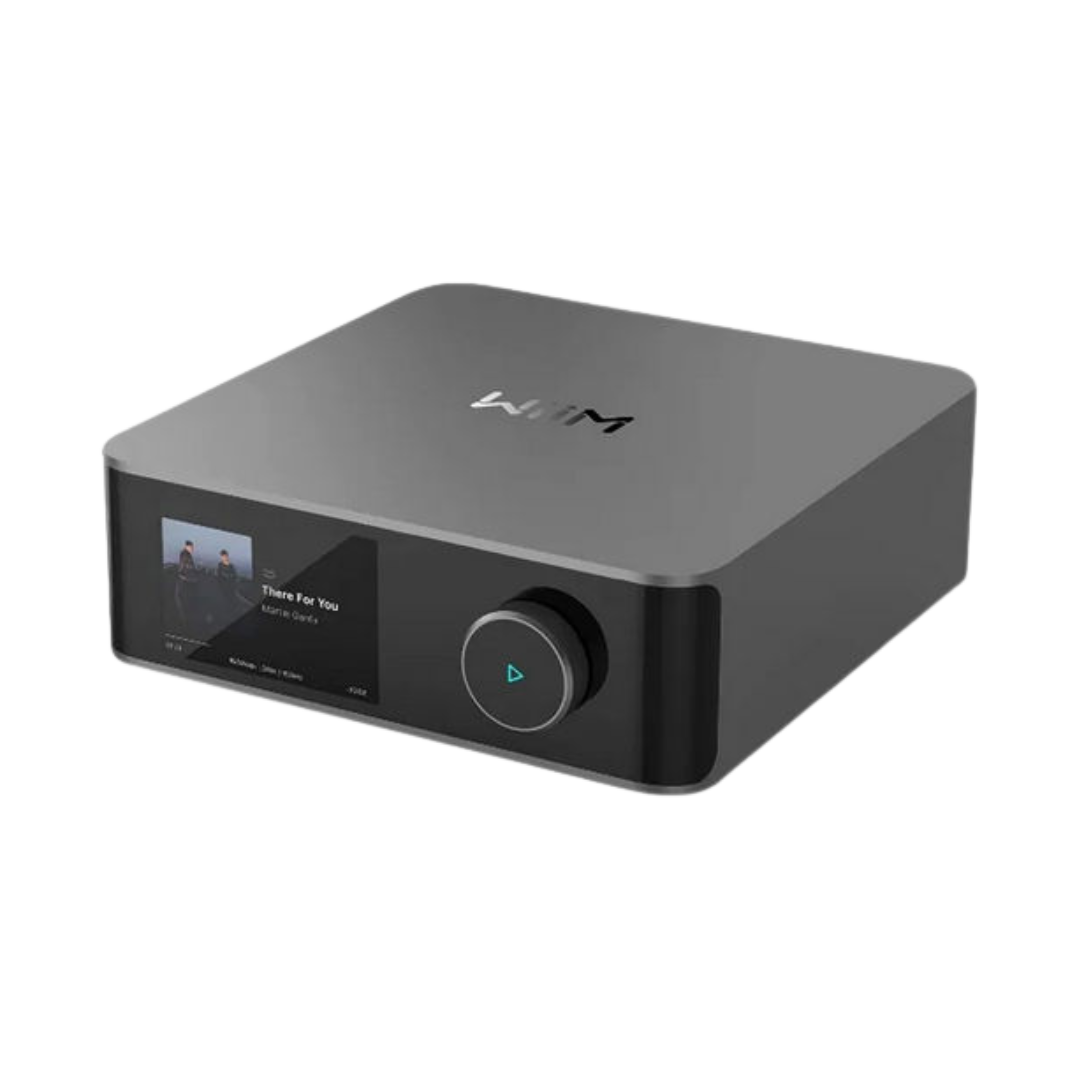

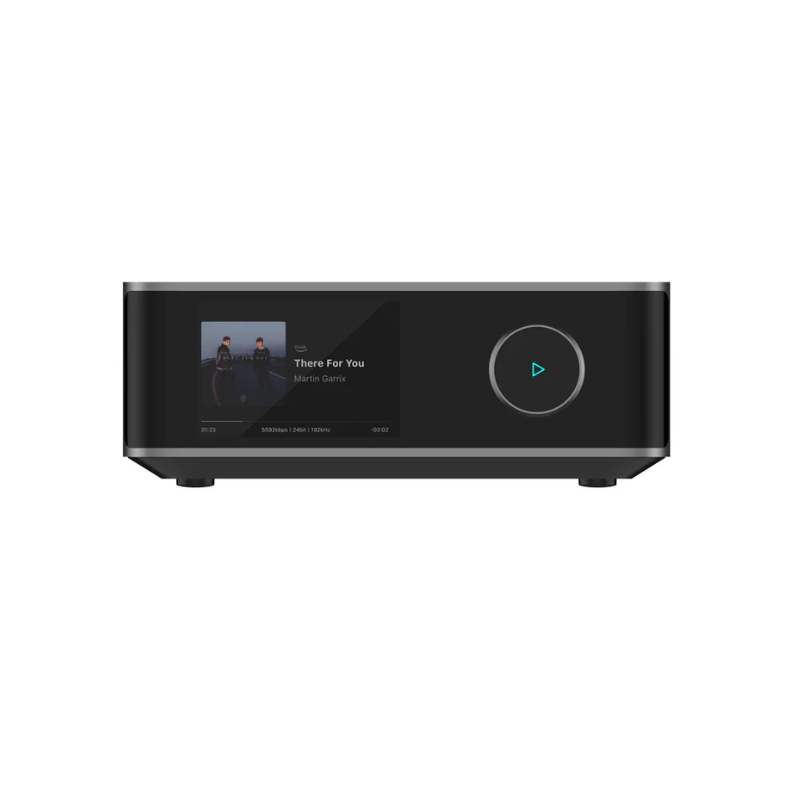

Beautiful Inside and Out
Designed to stand out and fit in, the Amp Ultra features a sleek unibody aluminum chassis and a vibrant 3.5″ glass-covered touchscreen. Easily control playback, switch sources, view album art, and more—all at your fingertips.
Post Filter Feedback Technology
At the core of the WiiM Amp Ultra’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimizes distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature. The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.
Specifications
| Dimensions and Weight | |
| Dimensions: | 7.87 x 8.3 x 3 inches (200 x 211 x 76.2 mm) |
| Weight: | 5.4 lbs (2.45 kg) |
| Audio Performance | |
| Power Output (THD = 0.08%, two channels driven): | 100 W per channel @ 8Ω, 200 W per channel @ 4Ω |
| Amplifier Technology : | Class-D with PFFB (Post-Filter Feedback) technology |
| Total Harmonic Distortion (THD+N): | ≤0.005%, -106 dB (A-weighted) |
| Signal-to-Noise Ratio (SNR) : | ≥120dB |
| Damping Factor: | 94 |
| Frequency Response: | 20Hz – 20kHz ± 0.5dB |
| Impedence Range: | 2 – 8Ω |
| Audio Processing | |
| Premium Audio Components: | ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound. |
| Bit-Perfect Playback: | Supports up to 192kHz/24-bit audio |
| Dynamic Range: | ≥120dB for high-resolution sound |
| Input & Output Options | |
| Analog Inputs: | 1x RCA Stereo: Connects to external audio sources like CD players or PCs |
| Digital Inputs: | 1x Optical (TOSLINK) – Up to 192kHz/24-bit HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats |
| Speaker Outputs: | Gold-plated binding posts (supports banana plugs or bare wire connections) |
| USB Audio Output: | Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant |
| Sub Output: | Dedicated output for powered subwoofers (RCA Mono) |
| Wireless & Network Connectivity | |
| Wireless Connectivity: | Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming |
| Wired Network: | Ethernet (100Mbps): Standard RJ45 port |
| EQ & Sound Customization | |
| Input-Specific EQ: | Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In |
| EQ Tools: | 24 Preset EQ Profiles 10-Band Graphic & Parametric EQ Built-in Room Correction with mic-guided acoustic tuning |
| Streaming & Smart Features | |
| Streaming Protocols: | WiiM Home App Chromecast Audio Spotify Connect TIDAL Connect DLNA, LMS Roon Ready (Certification Pending) |
| Multi-Room Audio: | Compatible with WiiM, Google Home, and Alexa multi-room systems |
| Stereo Pairing: | Supports L/R speaker setup for enhanced stereo imaging |
| Home Theater Mode: | Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC |
| Smart Presets: | Quick access to favorite playlists, sources, or routines |
| Alarm Clock: | Configurable time, repeat schedule, and music source |
| Touch Display | |
| Screen: | 3.5” glass-covered capacitive touchscreen |
| Functions: | Playback controls, album art, EQ adjustment, input switching Queue view, preset access, VU meters, time/date in standby Custom wallpapers and onboarding setup (OOBE) Supports firmware updates directly via screen |
| Design & Controls | |
| Chassis: | Precision-machined unibody aluminum for durability & heat dissipation |
| Dimensions: | 7.9” x 2.9” x 7.9” (200 x 75 x 200 mm) |
| Weight: | 5.4 lbs (2.45 kg) |
| Physical Controls: | Multifunctional rotary knob (Volume, Play/Pause) |
| Thermal Management: | Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control |
| Cooling System: | Passive, silent operation |
| Package Contents | User Guide *1 Power Cable *1 RCA Cable *1 Optical Cable *1 HDMI Cable *1 Remote 2 *1 Banana Plugs *4 |
