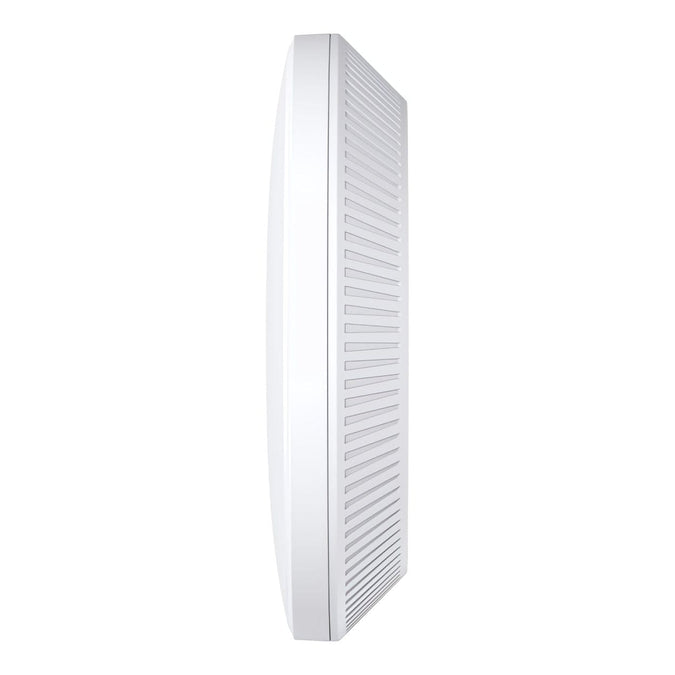

TP-Link EAP723 BE3600 Dual-band Wi-Fi 7 Ceiling Mount Access Point

TP-Link EAP723 BE3600 Dual-band Wi-Fi 7 Ceiling Mount Access Point

Features

• BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz)
• 1x 2.5G port unlocks the full potential of Wi-Fi 7
• 160 MHz bandwidth enables many more simultaneous transmissions
• Multi-RUs ensure the high performance of your network
• Advanced Functions: Centralised management, Mesh, and Seamless Roaming

Wi-Fi 7: Swifter, Smoother, Stronger

Dual-Band Wi-Fi 7 Throughput

Optimised Wired Performance with 2.5G PoE+ Port

With a 2.5 Gigabit Ethernet Port, EAP723 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Seamless Integration into the Omada SDN

Boosted Network Security

• Secure Guest Network with up to 16 SSIDs
• Boost Your Business with SMS Login
• WPA3 for Worry-Free Open Public Networks
• Rogue AP Detection

Technical Specification

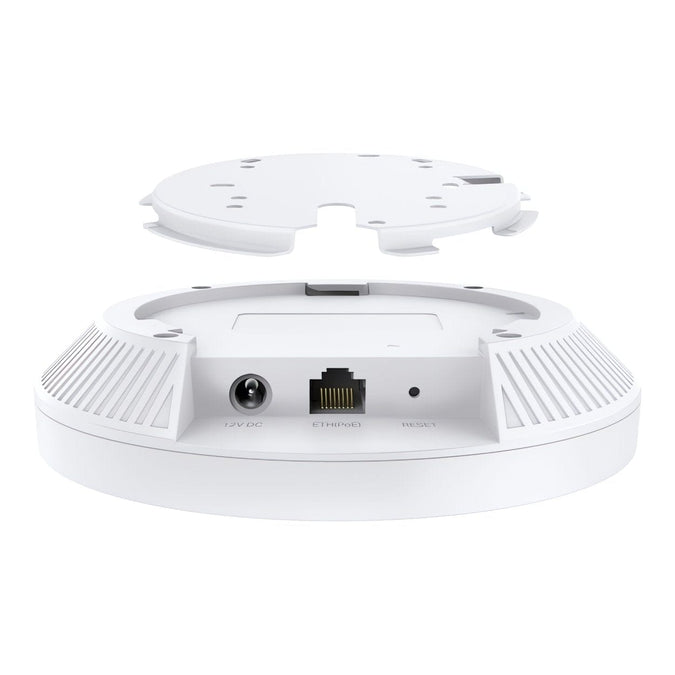

Interface: 1x 2.5G Ethernet Port

Button: Reset

Antenna

• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi

Coverage: Up to 140m² (1500 ft²)

Concurrent Clients: 250+

Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be

Frequency: 2.4 GHz and 5 GHz

Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)

Wireless Functions

• 4K-QAM
• Seamless Roaming
• MU-MIMO
• EHT160
• Mesh
• OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:16(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

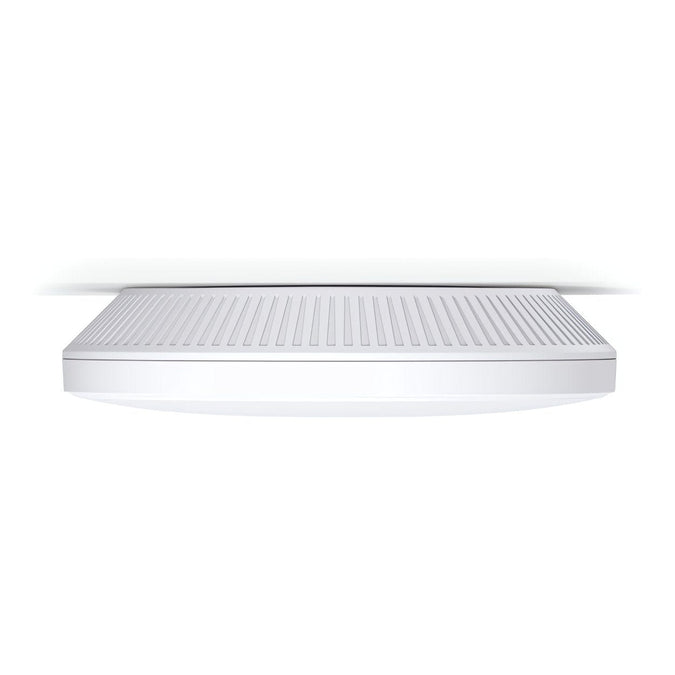

Mounting: Ceiling / Wall Mounting (Kits Included)

Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)

Package Content

• EAP723
• Installation Guide
• Ceiling/Wall Mounting Kit
