Pioneer TS-W312D4 Champion Series 12″ 500Watt RMS Dual 4-Ohm Subwoofer
CAR2402378
R 1,399.00
High Power Handling and High Endurance Dual layer, fiber reinforced elastic polymer surround. Iconic red spider for precise control and for stable and linear excursion. High heat resistance voice coil. Large magnet with high heat dissipation. Deeper and Louder Bass High rigidity IMPP™ composite seamless cone with honeycomb. Double stacked...

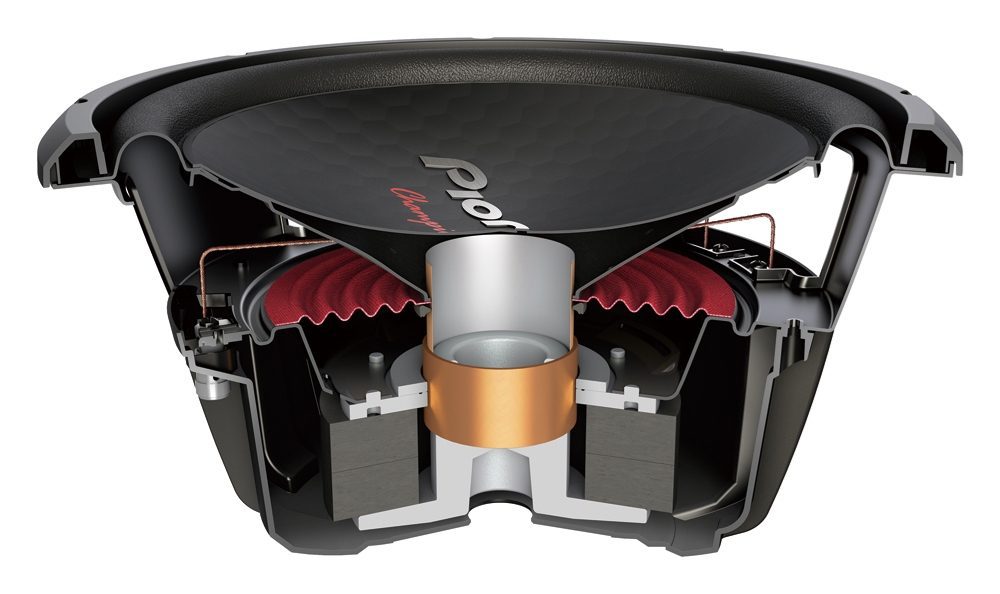

High Power Handling and High Endurance
Dual layer, fiber reinforced elastic polymer surround. Iconic red spider for precise control and for stable and linear excursion. High heat resistance voice coil. Large magnet with high heat dissipation.
Deeper and Louder Bass
High rigidity IMPP™ composite seamless cone with honeycomb. Double stacked large magnets and long voice coil with Aluminum bobbin.
Heavy and Sturdy Structure
Newly optimized steel basket design to decentralize load of heavy motor assembly and to maintain accurate cone motion. Firmly enclosed bottom basket for reliable bass reproduction.
Specifications
| GRADE | Champion Series |
| Size | 30 cm (12″) |
| Maximum Music Power | 1600 W |
| RMS | 500 W |
| Frequency Response | 20 Hz to 1.6 kHz |
| Sensitivity ( 1W / 1m ) | 92dB |
| Impedance | Dual 4Ω |
| Mounting Depth | 157 mm |
| Cut-Out Dimensionsø | 283 mm |
| Resonance Frequency | 37 Hz |
| Xmax | 11.3 mm |
| Magnet Weight | 2,540 g |
| Recommended Enclosure | 35.4 liters |
