JBL Cinema SB560 3.1 Channel Soundbar Wireless Sub - Black

JBL Cinema SB560

Product description

Step up your sound with the 3.1 channel JBL Cinema SB550 soundbar. 250 watts of powerful Dolby Audio in a compact design, plus extra deep, extra loud bass from a wireless 5.25″ subwoofer will make everything you watch more exciting. A dedicated centre channel means TV and film dialogue always sounds crystal clear. The setup is simple, with a choice of either a one-cable HDMI ARC or optical connections. And when the TV is off, seamless Bluetooth connectivity means you can use it to play your favourite streaming music and podcasts from any device.

Product features (JBL Cinema SB560)

Core Features

• 3.1 Channel Sound System: The system provides a balanced sound experience with three audio channels in the soundbar and one dedicated to bass in the subwoofer.
• Powerful Audio Output: It delivers 250 Watts of maximum total speaker output power, providing an immersive cinematic experience.
• Dedicated Center Channel: A specific driver for the center channel ensures that TV and film dialogue is exceptionally clear, so you won’t miss a word.
• Wireless Subwoofer: The system includes a 5.25″ wireless subwoofer that delivers deep, thrilling, and extra-loud bass without the clutter of cables.
• Dolby Audio Embedded: Integrated Dolby Audio enhances the movie experience with rich, dynamic sound.

Connectivity

• HDMI ARC (Audio Return Channel): Features a single-cable HDMI ARC connection for a simple and hassle-free setup with your TV.
• Bluetooth 5.3: Allows for seamless wireless music streaming and playback of podcasts from any mobile device.
• Optical Input: Includes an optical port for alternative wired audio input options.
• USB Port: A Type A USB port is available for service only (USB playback is available in the US version).

Product specifications (JBL Cinema SB560)

General Specifications

Model: CINEMA SB560

Sound system: 3.1 channel

Power supply: 100 – 240V AC, ~ 50/60Hz

Total speaker power output (Max @THD 1%): 250W

Soundbar output power (Max @THD 1%): 150W

Subwoofer output power (Max. @THD 1%): 100W

Soundbar transducer: 3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters

Subwoofer transducer: 5.25” (133 mm), wireless subwoofer

Standby power: < 0.5 W

Operating temperature: 0°C – 45 °C

Audio Specifications

Frequency response: 45Hz-20kHz (-10dB)

Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D): 950 x 64 x 80 mm’

Subwoofer dimensions (W x H x D): 200 x 324 x 250 mm

Soundbar weight: 2.5kg

Subwoofer weight: 4.2 kg

Packaging dimensions (W x H x D): 1025 x 235 x 397 mm

Packaging Weight: 8.8kg

Control and Connection Specifications

USB port: Type A

USB rating: 5V DC, 0.5A

Supporting file formats: mp3

MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate: 16 – 48 kHz

Bluetooth version: 5.3

Bluetooth profile: A2DP 1.3, AVRCP 1.6

Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz

Bluetooth Max. transmitting power: <10 dBm (EIRP)

Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK

2.4G wireless transmitter frequency range: 2402-2481 MHz

2.4G wireless transmitter power: ＜10dBm (EIRP）

2.4G wireless modulation: GFSK

Video Specifications (JBL Cinema SB560)

HDMI ARC (Audio Return Channel): 1

HDMI HDCP version: 1.4

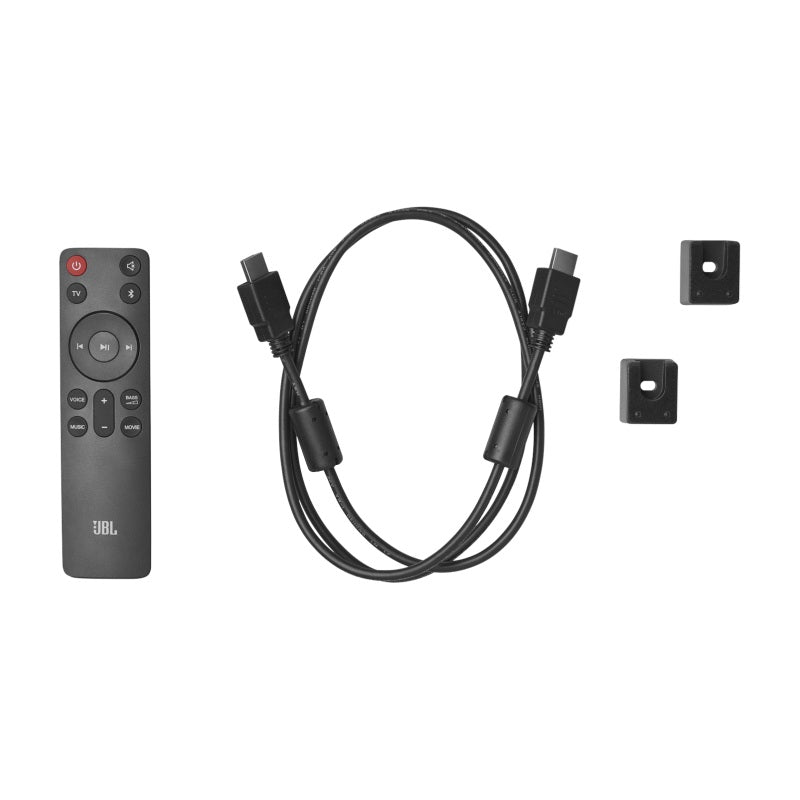

What’s in The Box?
