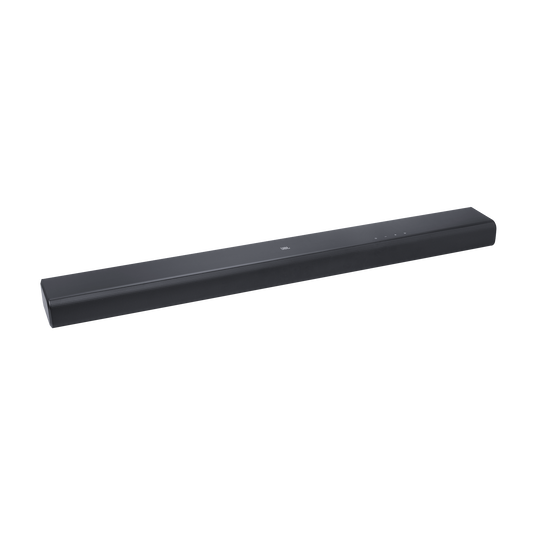

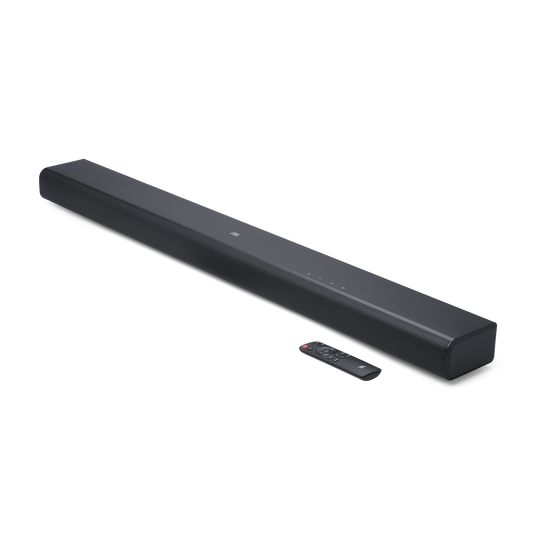

JBL Cinema SB510 3.1 Channel Soundbar with a Built-in Subwoofer
Free Delivery
Free delivery on orders over R600 within Pretoria
- The JBL Cinema SB510 is a 3.1 channel all-in-one soundbar with a built-in subwoofer. It delivers 200 watts of powerful Dolby Audio with deep bass, all in a hassle-free, compact design that fits neatly into any room. A dedicated center channel driver means TV and film dialogue is always crystal clear. Setup is easy using either one-cable HDMI ARC or optical connections, and convenient Bluetooth connectivity means you can use it for wireless music streaming from any device.
Dedicated center channel driver provides superior voice clarity
A dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again.
Built-in subwoofer
The built-in subwoofer delivers deep bass without the need for another box or extra cables to clutter up your space.
One cable connection with HDMI ARC
The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience.
Technical Specifications:
General Specifications
Model: CINEMA SB510
Sound system: 3.1 channel
Power supply: 100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%): 200W
Soundbar output power (Max @THD 1%): 150W
Subwoofer output power (Max. @THD 1%): 50W
Soundbar transducer: 3x (45 x 80)mm racetrack drivers
Subwoofer transducer: 1x (70 x 88)mm, built-in subwoofer
Standby power: < 0.5W
Operating temperature: 0 C - 45 C
HDMI Specification
HDMI ARC (Audio Return Channel): 1
HDMI HDCP version: 1.4
Audio Specification
Frequency response: 55Hz-20kHz (-10dB)
Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
USB Specification
USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file formats: mp3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16 - 48 kHz
MP3 bitrate: MPEG 1 Layer 1: 32 kbps - 448 kbps; MPEG 1 Layer 2: 32 kbps - 384 kbps; MPEG 1 Layer
3: 32 kbps - 320 kbps; MPEG 2/2.5 Layer 1: 32 kbps - 256 kbps; MPEG 2/2.5 Layer 2/3: 8 kbps - 160 kbps
Wireless Specification
Bluetooth version: 5.3
Bluetooth profile: A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range: 2400 MHz - 2483.5 MHz
Bluetooth Max. transmitting power: <10 dBm (EIRP)
Bluetooth modulation: GFSK, /4 DQPSK, 8DPSK

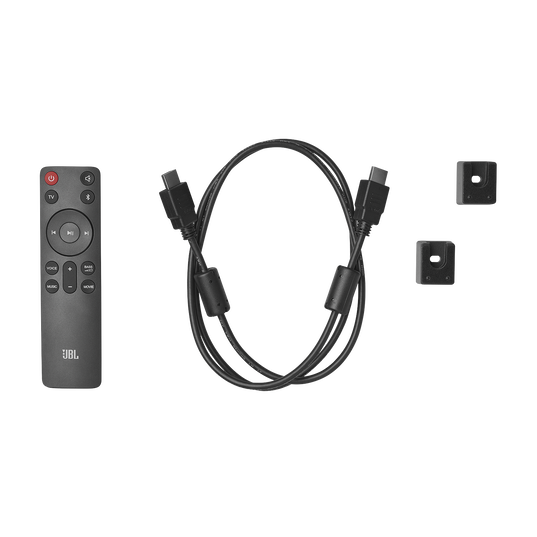

What's in the box
JBL Cinema SB510 Soundbar with Build-In Subwoofer
Remote control with batteries
Power cables (up to 4pcs depending on region SKUs)
HDMI cable
Wall-mount bracket kit with screws
Quick start guide
Warranty card
Safety sheet
Connectivity: Bluetooth,1 HDMI In,1 HDMI Out,HDMI ARC
Model: BAR800 Pro 5.1.2CH
Number of channels: 5.1
Remote control: Yes
Sound modes: Auto Mode,Cinema,Standard,Bass Boost
Subwoofer type: Wireless
Usb: Yes
Wattage: 720w
