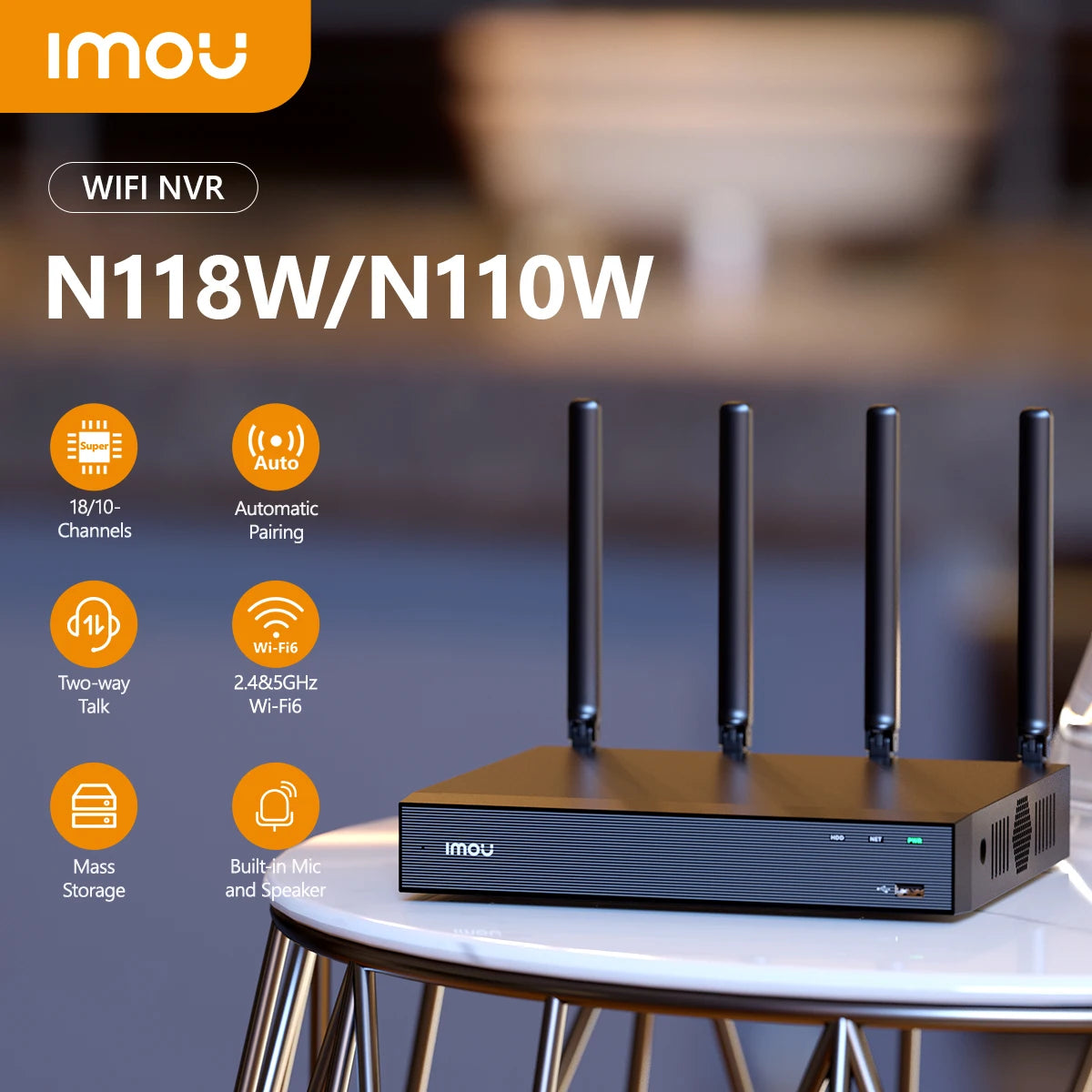

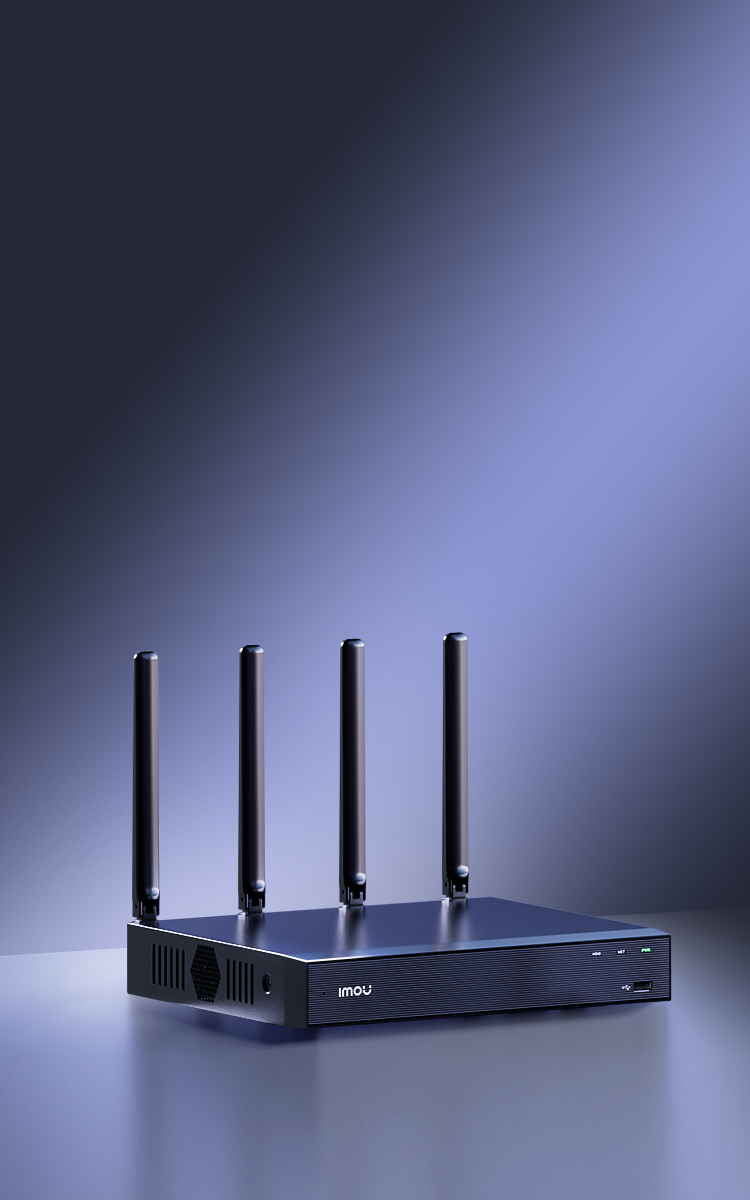

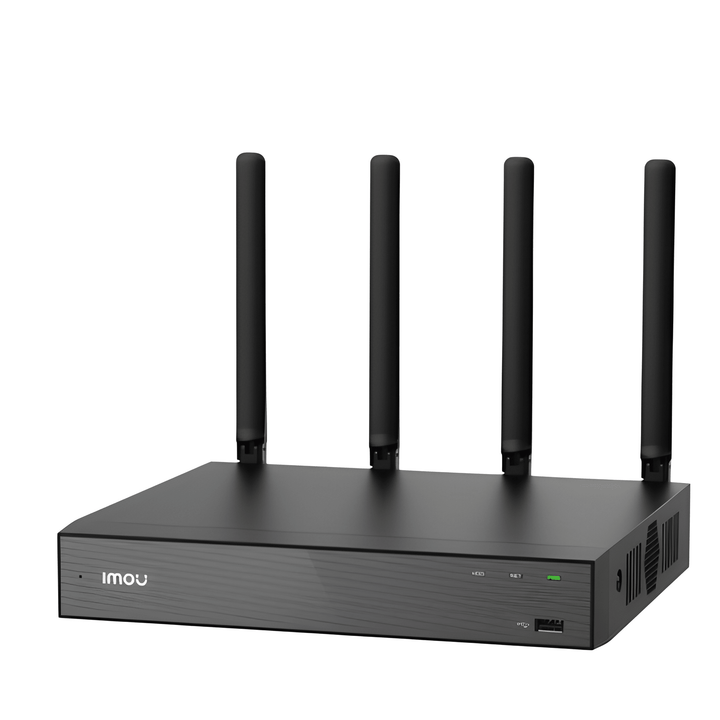

IMOU 18CH Network Video Recorder (NVR) N118W-8A0E
Free Delivery
Free delivery on orders over R600 within Pretoria
The IMOU N118W NVR is a versatile, wireless-ready network video recorder designed for smooth camera integration, reliable recording, and efficient playback. Perfect for homes, small businesses, and multi-camera setups, these NVRs support high-definition video streaming and extended storage, ensuring professional-grade monitoring and peace of mind. Compatible with multiple IMOU and ONVIF-compliant cameras, they allow flexible camera management, remote access, and real-time playback through the IMOU app. With robust performance, easy installation, and scalable functionality, the N118W NVRs provide a complete solution for comprehensive and intelligent video surveillance.

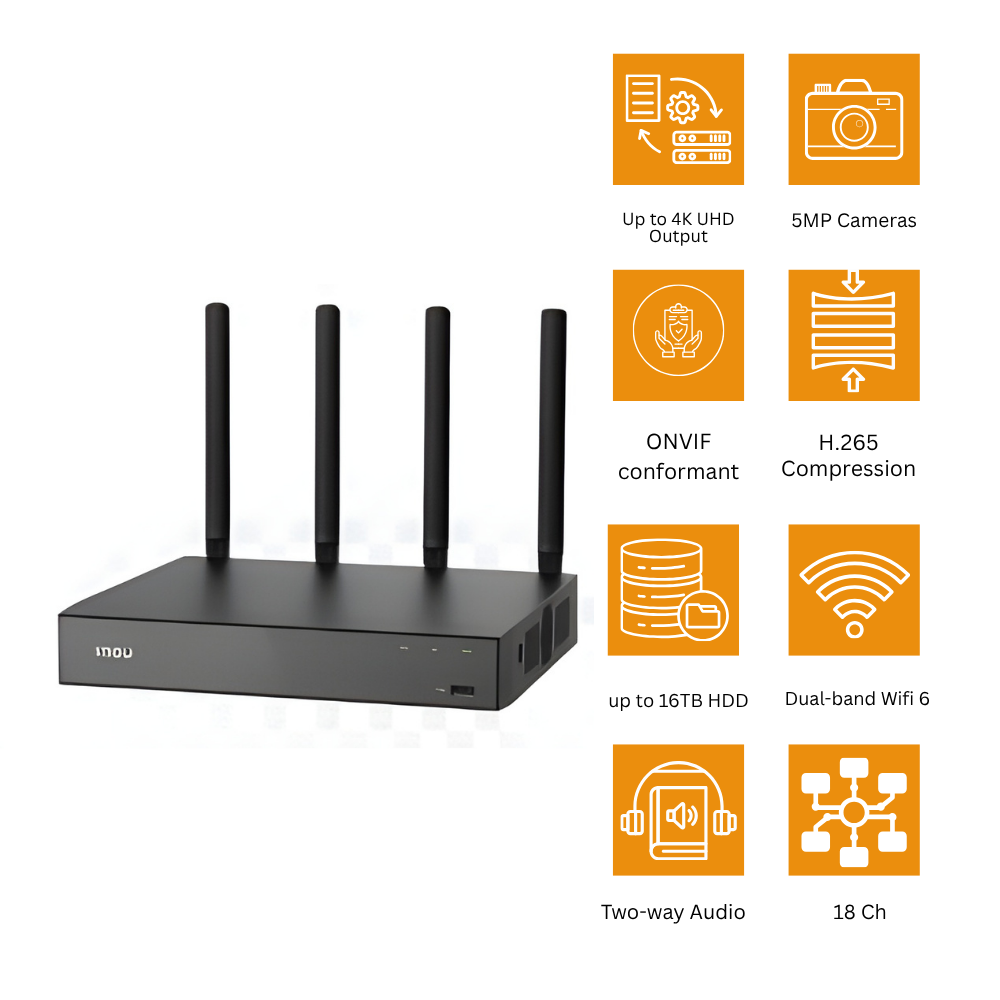

Key Features
-
Channel Support —N118W supports up to 18 cameras. Flexible setup accommodates varying surveillance scales.
-
Dual-Band Wi-Fi 6 — 2.4 GHz + 5 GHz connectivity with high-gain antennas ensures stable, wide-range wireless connections.
-
High-Definition Outputs — HDMI (up to 4K) and VGA ports for full-HD and ultra-clear video playback on external monitors.
-
Smart Playback — View 4 channels simultaneously at 8 MP @ 15 fps or 5 MP @ 30 fps; fast-forward options (2×, 4×, 8×, 16×) simplify review.
-
Large Storage Capacity — One SATA port supports HDDs up to 16 TB for extended retention (HDD not included).
-
Two-Way Audio — Integrated microphone and speaker allow real-time communication via connected cameras.
-
ONVIF & IMOU Compatibility — Supports auto-pairing with IMOU cameras and third-party ONVIF-compliant devices.
-
Compact & Quiet Design — Low-profile, efficient cooling design suitable for homes or small-to-medium businesses.
Technical Specifications
| Feature | Specification |
|---|---|
| Channel Capacity | N118W: up to 18 channels |
| Wi-Fi Connectivity | Dual-band Wi-Fi 6 (2.4 GHz + 5 GHz), multiple high-gain antennas |
| Video Outputs | 1 × HDMI (supports 4K), 1 × VGA |
| Maximum Decoding Capacity | 4 ch at 8 MP @ 15 fps or 4 ch at 5 MP @ 30 fps |
| Video Compression | H.265 / H.264 |
| Storage Support | 1 × SATA HDD port, up to 16 TB (not included) |
| Network Bandwidth | Approx. 90 Mbps |
| Audio Features | Built-in microphone + speaker (two-way) |
| Backup Interfaces | 2 × USB ports, network backup supported |
| Protocols | ONVIF-compliant, auto-pairing with IMOU cameras |
| Power Supply | DC 12 V / 2 A |
| Power Consumption | < 9 W (without HDD) |
| Operating Temperature | –10 °C to +45 °C |
| Dimensions | 241.5 × 260 × 60.2 mm |
| Weight | Approx. 890 g (without HDD) |
