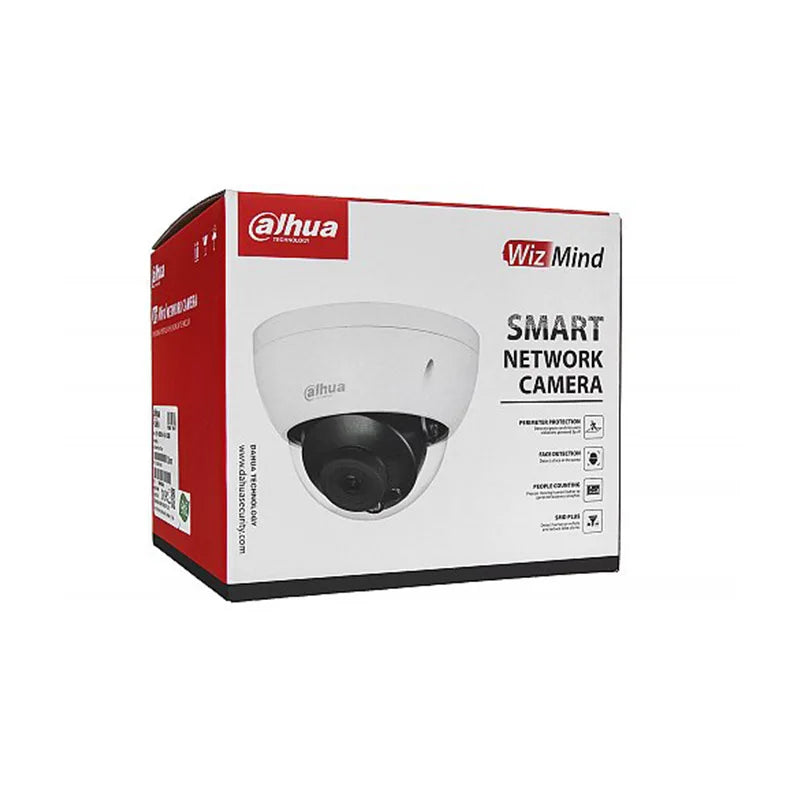

Dahua Lite Series HDBW2230E 2MP 2.8mm IR Fixed-Focal Dome

Name: Dahua Lite Series HDBW2230E 2MP 2.8mm IR Fixed-Focal Dome
Brand: Dahua
SKU: SEC1801748
Price: 1399.00 ZAR
Availability: InStock

Brand: Dahua

SKU: SEC1801748

R 1,399.00

Dahua Lite Series HDBW2230E 2MP 2.8mm IR Fixed-Focal Dome Network Camera DH-IPC-HDBW2230EP-S-0280B-S2-QH2 With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidthand storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. Itsupports SD...

Subtotal: R 1,399.00

Free Delivery

Free delivery on orders over R600 within Pretoria

Description

Dahua Lite Series HDBW2230E 2MP 2.8mm IR Fixed-Focal Dome Network Camera DH-IPC-HDBW2230EP-S-0280B-S2-QH2

With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth
and storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It
supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10
(Supported by some select models).

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Starlight
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in
the environment of low illuminance. It widely applies to various environments of low illuminance.

IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control
protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against
external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to
outdoor environment with instable voltage.

Features

2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
Outputs 2MP (1920 × 1080)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
Max. 256 GB Micro SD card
12V DC/PoE power supply
IP67, IK10 protection

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 Lux@F1.6 (Color, 30 IRE)
0.0005 Lux@F1.6 (B/W, 30 IRE)
0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto; manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6

Field of View

2.8 mm: Horizontal: 108°; Vertical: 56°; Diagonal: 128°
3.6 mm: Horizontal: 88°; Vertical: 44°; Diagonal: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m (126.64 ft)

15.4 m (50.52 ft)

7.7 m

(25.26 ft)

3.9 m

(12.80 ft)

3.6 mm

58.9 m (193.24 ft)

23.6 m (77.43 ft)

11.8 m (38.71 ft)

5.9 m

(19.36 ft)

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
1920 × 1080@1–25/30 fps
Sub stream:
704 × 576@1–25 fps
704 × 480@1–30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS
