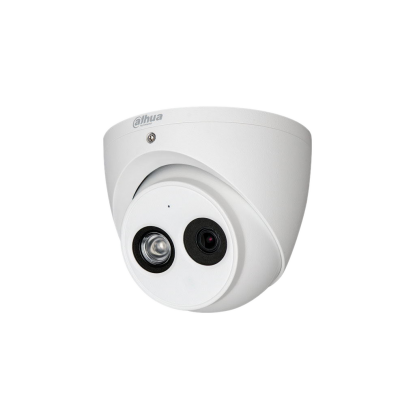

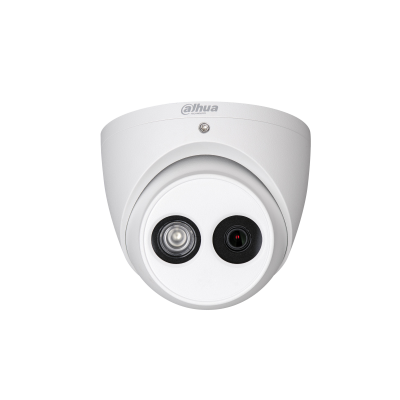

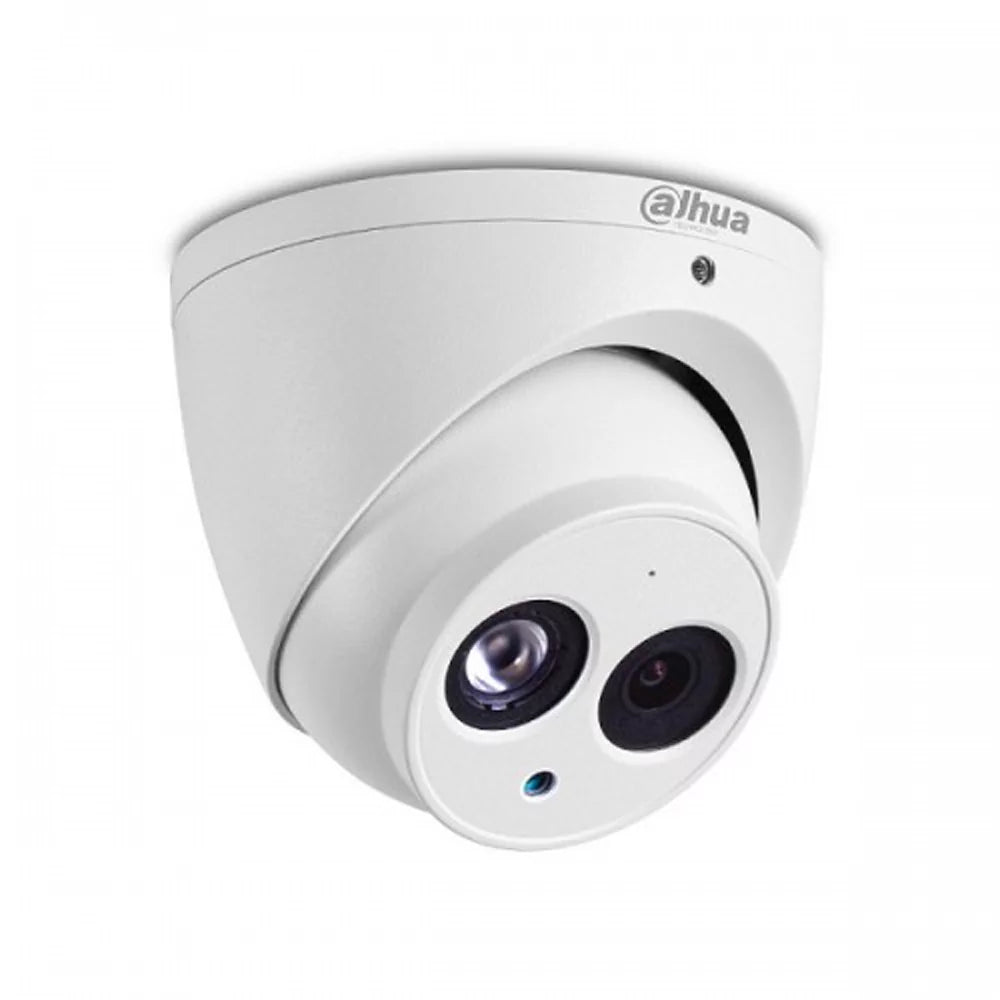

Dahua HAC-HDW1200EM 2MP IR HDCVI Fixed-focal Eyeball Camera
Free Delivery
Free delivery on orders over R600 within Pretoria
Discover the brilliance of 1080P full HD video and the ease of utilising current cabling infrastructure through HDCVI. The Lite series 1080P HDCVI camera presents a streamlined design, delivering top-notch image quality at a budget-friendly price. With a selection of motorised or fixed lens models, along with a multi-language OSD and HD/SD switchable output, it provides versatility. Its structural adaptability and remarkable cost-effectiveness position the camera as the optimal selection for SMB solutions.
- Max 30fps@1080P
- HD and SD output switchable
- Built-in mic
- 3.6mm fixed lens (2.8mm, 6mm optional)
- Max. IR length 50m, Smart IR
- IP67, DC12V
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
2 MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.01 lux@F2.0 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>65 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
50 m (164.04 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
1 (IR light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle Adjustment |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm; 3.6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
2.8 mm: H: 99°; V: 55°; D: 114° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
2.8 mm: 0.6m (1.97 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2.8 mm |
45.1 m (147.97 ft) |
18.1 m (59.38 ft) |
9.0 m (29.53 ft) |
4.5 m (14.76 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6 mm |
50.9 m (166.99 ft) |
20.3 m (66.60 ft) |
10.2 m (33.46 ft) |
5.1 m (16.73 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
CVI: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
BLC; HLC; DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto; Area white balance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Mode |
Smart IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
Off/On (8 areas, rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN 62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
One channel built-in Mic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC ± 30% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max 3.2 W (12 VDC, IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
Φ106.0 mm × 93.6 mm (Φ4.17" × 3.69") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.44 kg (0.97 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.60 kg (1.32 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount; ceiling mount; vertical pole mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
