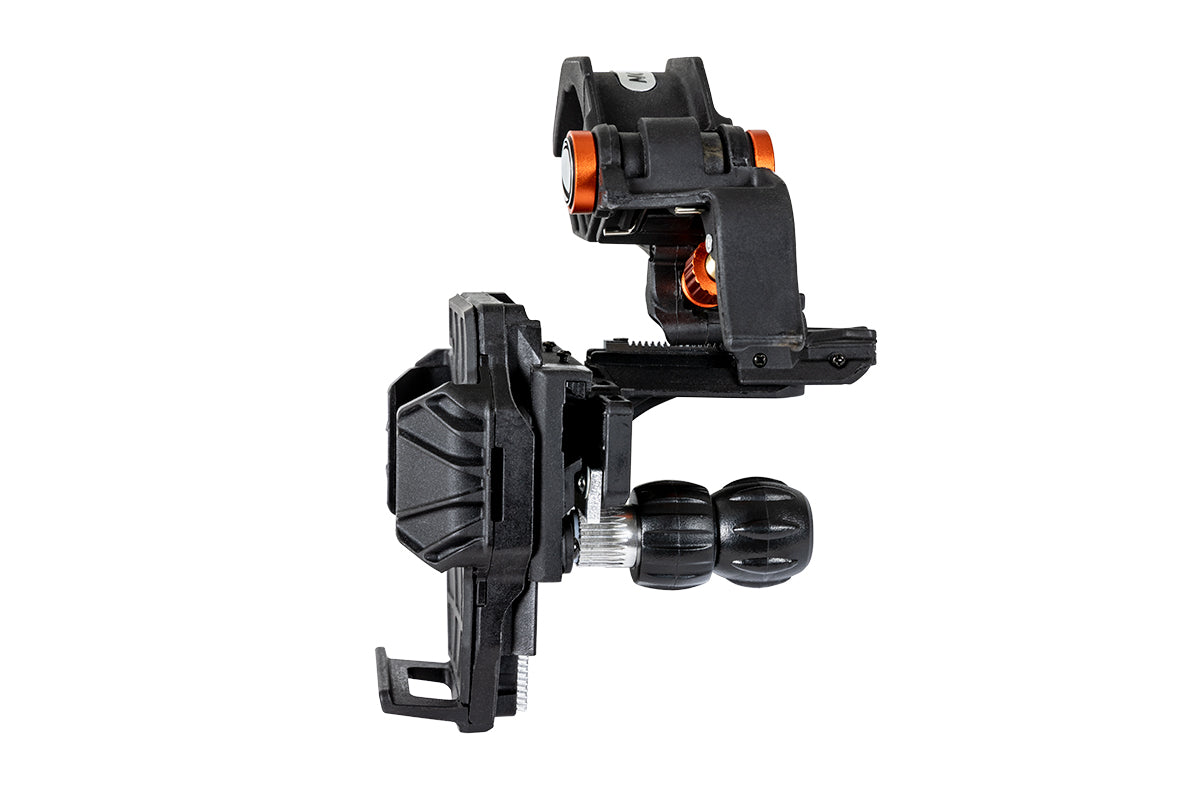

Celestron NexYZ 3-Axis Universal Smartphone Adapter - C/81055
PHT305373
R 1,999.00
A complete digiscoping solution: NexYZ connects your smartphone to almost any eyepiece NexYZ’s patented design works with telescopes (with most 1.25” or 2” eyepieces), spotting scopes, binoculars, monoculars, and microscopes (with the included adapter rings). Works with virtually all smartphone models, including the latest devices from Apple, Samsung, and Google....
- A complete digiscoping solution: NexYZ connects your smartphone to almost any eyepiece
- NexYZ’s patented design works with telescopes (with most 1.25” or 2” eyepieces), spotting scopes, binoculars, monoculars, and microscopes (with the included adapter rings).
- Works with virtually all smartphone models, including the latest devices from Apple, Samsung, and Google.
- Features three directional knobs (X-, Y-, and Z-axis) that perfectly align your phone’s camera with the eyepiece in seconds. In addition, you can make tension adjustments to keep the phone firmly in place.
- Stands up to rigorous field use thanks to its robust, durable construction with a metal frame and polymer body.
| General | |
|---|---|
| Compatible Optics: | Telescopes, Binoculars, Spotting Scopes, Monoculars and Microscopes |
| Eyepiece Clamp Style: | Spring Loaded w/ lock down knob |
| Eyepiece Clamp Range: | 35mm - 60mm (1.37" - 2.36") - NOTE: Minimum size 25mm (.98") with included adapters |
| Phone Clamp Style: | Easy load with internal spring |
| Phone Clamp Range: | 65mm - 90mm (2.55" - 3.54") |
| Fine Adjustment Style: | X,Y,Z Motion- Controlled by knobs with rack and pinion system |
| Materials: | Cast Metal/ Injection molded Fiber reinforced Plastic |
| Accessories: | 2x Adapters for microscope eyepieces |
| Dimensions (open): | TBD |
| Dimensions (Closed): | 165.1mm x 139.7mm x 107.95mm (6.50" x 5.50" x 4.25") |
| Weight: | 10 oz ( 283 g) |
