Aerial King Satfinder 001-A00-003

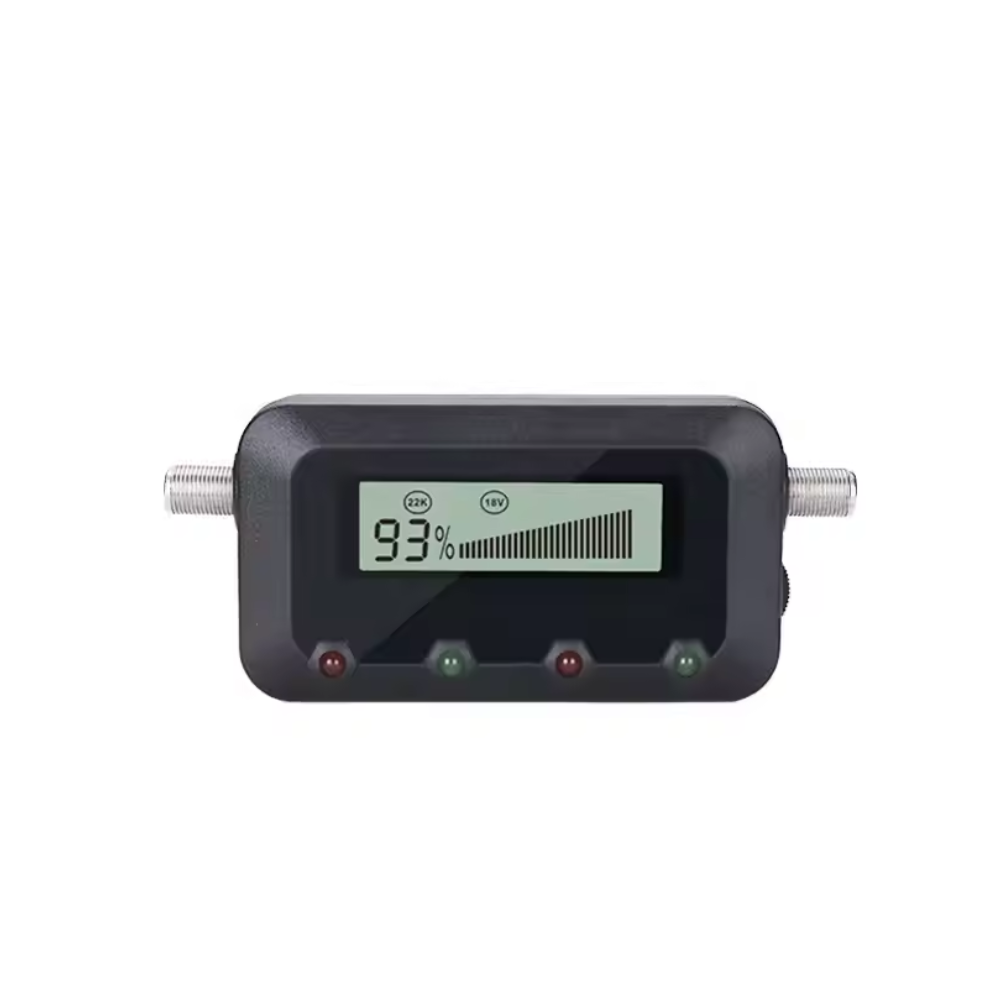

Aerial King Digital Satellite Finder (001-A00-003) – LCD Signal Strength Meter with 13/18V & 22 kHz Indicators

The Aerial King Digital Satellite Finder (001-A00-003) is a dependable meter designed to make dish alignment fast and accurate. Connect it in-line between your LNB and decoder/receiver and use the on-screen percentage plus bar graph to peak signal quality in seconds. Clear 13 V/18 V and 22 kHz indicators verify that your receiver is supplying the correct voltage and tone, helping you diagnose cabling and LNB issues on-site.

Covering 950 ~ 2150 MHz, the meter works with universal Ku-band LNBs and DVB-S/S2 services common in Southern Africa, including typical DStv and Openview installations. Its rugged housing, simple interface, and standard F-type connectors make it the practical choice for homeowners, installers, and field techs who need a reliable alignment tool without the bulk or cost of a pro spectrum analyzer.

Problems It Solves

• Ideal for alignment, fault-finding, and confirming receiver voltage/tone.
• See instant feedback on dish adjustments (no guesswork).
• Verify power/tone from the receiver before blaming the LNB.
• Lightweight and portable for ladder and rooftop work.

Key Features

• Suitable for typical DStv and Openview residential installs
• Backlit LCD with signal % and bar graph
• Status LEDs: 13 V, 0 kHz, 18 V, 22 kHz
• Wide 9502150 MHz operating range
• 75 input impedance; F-type in/out
• Powered by receiver: 1318 VDC
• Operating temperature: 0 °C to 40 °C
• Compact, impact-resistant housing

What cables do I need?
F-to-F patch lead. (Not included)

Specifications

• Frequency range: 950 MHz – 2150 MHz
• Input level range: –40 dBm to –10 dBm
• Input impedance: 75 Ω
• Supply voltage: 13–18 VDC (from receiver/decoder)
• Tone detection: 22 kHz indicator
• Connectors: F-female (LNB ⟷ Receiver)
• Display: Backlit LCD, percentage + bar graph
• Operating temp: 0 °C ~ 40 °C
