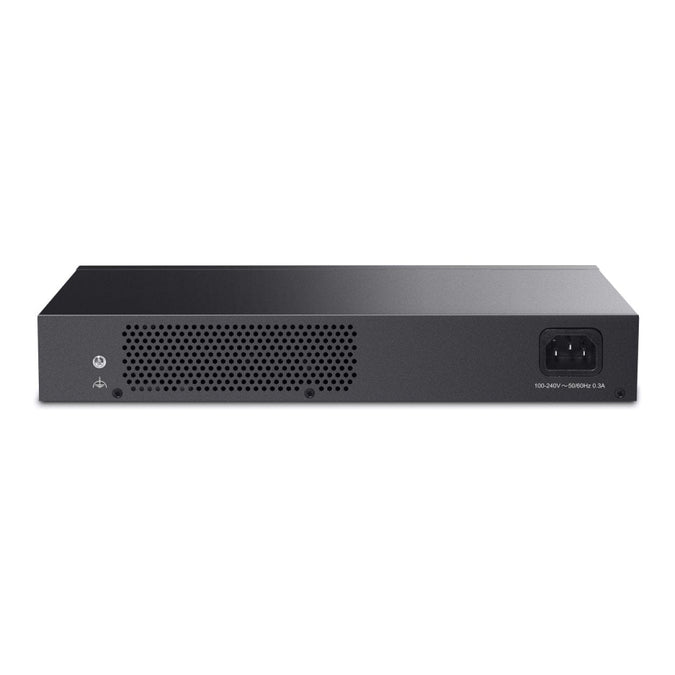

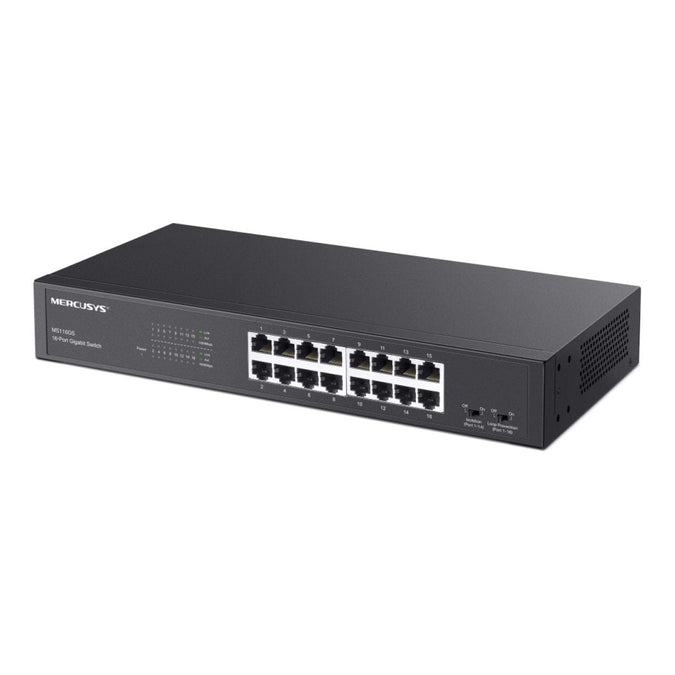

Mercusys MS116GS 16-port GbE Unmanaged Switch

Mercusys MS116GS 16-port GbE Unmanaged Switch

Features

•  Full Gigabit Ports: 16x 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
•  Plug and Play: Simple to use and saves time and effort
•  Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
•  Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
•  Durable Metal Casing: Allows for efficient heat dissipation and long network life

Connect More with 16 Gigabit Ports

Quickly expand your wired network with sixteen 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS116GS offers flexible connectivity and is fully compatible with 4K UHD TVs, computers, printers, IP cameras, game consoles, and more.

Default / Isolation / Loop Prevention Multi-Mode

One-Click Traffic Separation

With one click, Isolation Mode easily divides traffic for ports 1–14 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Prevent Network Loops

Automatically detect loops and block the corresponding port while the power and port indicator flash slowly to alert. Easy to monitor and address loop-related issues within your network.

Durable, Silent, and Flexible

MS116GS’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.

Plug and Play

Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. No configuration is required.

Reliable Performance

With a non-blocking switching design, MS116GS enables packets to be forwarded and filtered at the full capacity of the wired connection. MS116GS incorporates IEEE 802.3x flow control for Full Duplex operation and backpressure mechanisms for Half Duplex, effectively managing traffic congestion and ensuring reliable performance.

Technical Specification

Product: Mercusys MS116GS 16-Port Gigabit Desktop/Rackmountable Switch

Interfaces: 16x 10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p

Switching Capacity: 32 Gbps

MAC Address Table: 8K

Transfer Method: Store and Forward

Advanced Features: 802.3X Flow Control, 802.1P/DSCP QoS, Loop Prevention, Isolation

External Power Supply: 100-240VAC, 50/60Hz

Dimensions: 294 x 140 x 44mm
