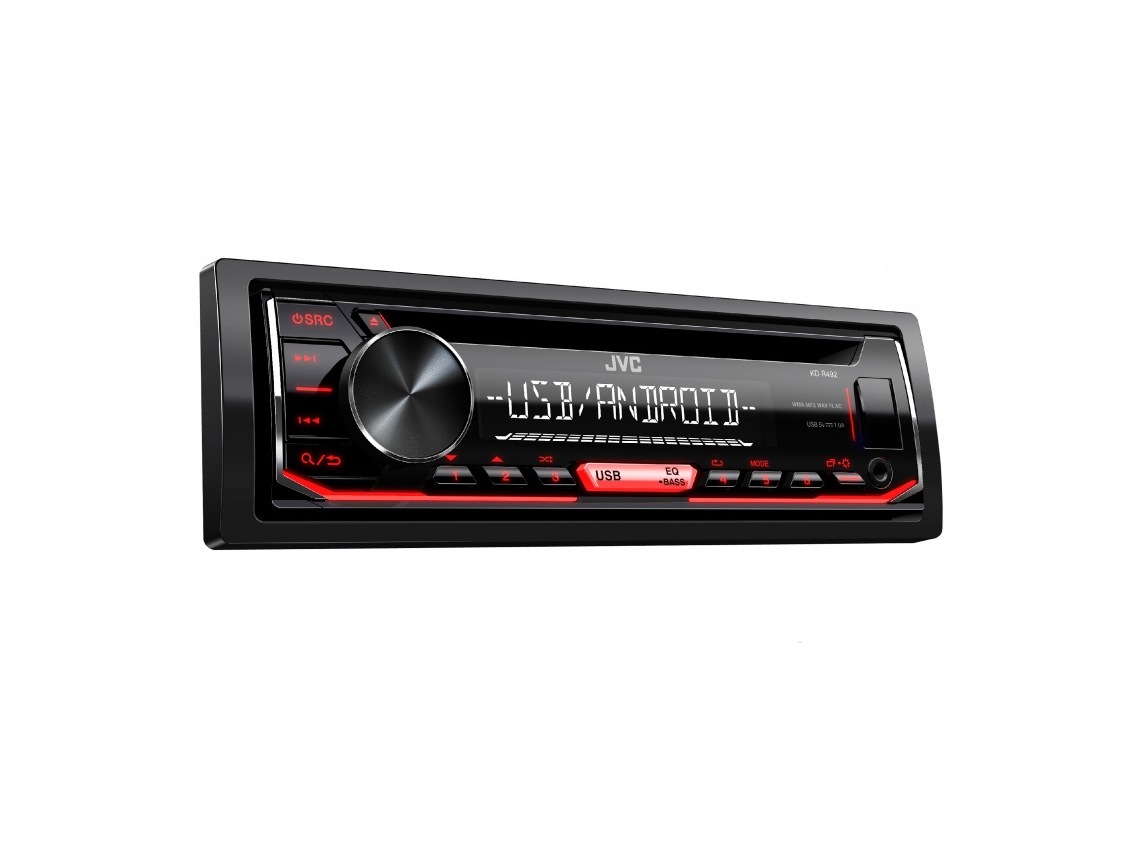

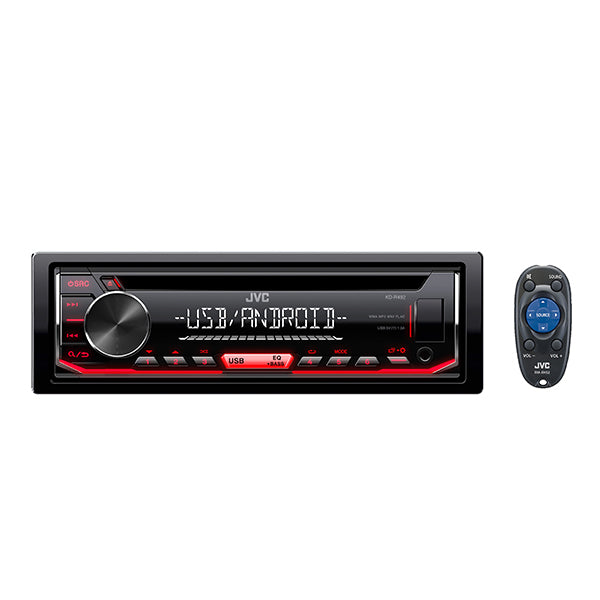

JVC KD-R492M Multimedia CD Receiver With Usb

JVC KD-R492M

Mp3 Cd Receiver With Usb

15-Preset EQ Including “Drvn EQ”

Preset EQ Patterns Are Selectable From 15 Types Including ”Drvn EQ” That Is Designed To Maximize The Performance Of JVC Drvn Series Amplifiers And Speakers, As Well As Producing Dynamic Sound For Any Speaker.

Media Playback

FLAC Compatible With Tag

Compatible With FLAC Format Which Allows Digital Audio To Be Losslessly Compressed, So That File Size Is Reduced Without Any Information Being Sacrificed. Also Compatible With Playback Of 16bit / 48khz FLAC Format.

Smartphone Integration

Android^™ Music Playback Via USB

(AUTO MODE/AUDIO MODE)

Simply Connect Your Android Smartphone Or Tablet To The Receiver Via USB And Enjoy A Totally “Plug And Play” Music Playback Solution. The Android Open Accessory Protocol (AOA2) Is Supported So Absolutely No Preparation Or Set-Up Is Necessary – Just Plug It In And It’s Ready To Play Audio Files Stored On Your Android Device In What’s Called “AUDIO MODE”. Or, By Installing The Free JVC Music Play App* Available On Google Play, You’ll Be Able To Access “AUTO MODE” For Added Functionality Including Folder Up & Down, And Search Artist/Album/Song.

KD-R492M

Display

Display Type

VA LCD Display

LCD Color

White

Key Color

Red

Russian Text Display Compatible

Yes

Spanish Text Display Compatible

Yes

Auto Dimmer

Yes

Brightness Control

Yes

Media Playback

MP3 Compatible With Tag

CD / USB

WMA Compatible With Tag

CD / USB

WAV Compatible With Tag

USB

FLAC Compatible With Tag

USB ( Up To 48khz/16bit )

Android Control

Android Music Playback

Yes (AUDIO MODE & AUTO MODE)[1]

USB

Position

Front

USB Power Supply

Yes (1A)

Drive Change Mode For Mass Storage Class

Yes

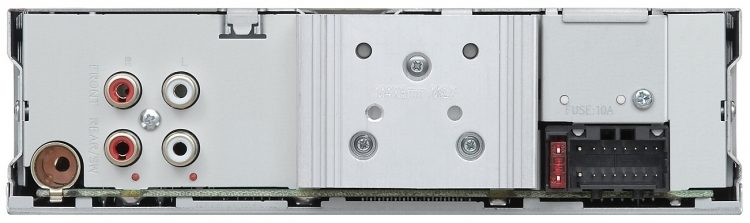

Inputs And Outputs

AUX Input

1 (Front)

Line Output Terminals (Pair)

2 Pairs (Front + Rear/Subwoofer Selectable)

Pre-Output Level

2.5V

Subwoofer Output With Level/Frequency Control

Yes (Level -8 – +8)

Subwoofer Output Level

2.5V

Tuner

Radio Data System (RDS)

Yes

Preset Stations

18FM + 6AM

Strong Station Memory (For FM)

Yes

Radio Timer

Yes (Once/Daily/Weekly)

Tuner Preset Memory (For Power Disconnection)

Yes

FM

Frequency Range (Frequency Step)

87.5 – 108.0mhz

AM

Frequency Range (Frequency Step)

(MW) 531 – 1,602khz (9khz), (LW) 153 – 279khz (9khz)

Audio

Maximum Power Output

50W X 4 / 50W X 2 +Subwoofer (4 Ohms) 50W X 1

Full Bandwidth Power (At Less Than 1%THD)

22W X 4

Subwoofer Direct Connection (Mono Lch)

Yes

EQ

Yes (3-Band Parametric EQ)

Preset EQ

Yes (15-Preset)

Bass Boost

Yes

Loudness Control

Yes (Off/Low/High)

High-Pass Filter/Low-Pass Filter

– /Yes

General

Detachable Face Panel

Yes

Carrying Case

Yes

Steering Remote Control Ready

Yes

Dimensions (W X H X D)

Installation Size

182 X 53 X 158mm

Weight

1.2kg

Unit Weight In Individual Package

1.5kg
